TECHNICAL SPECIFICATION
• Rated voltage: a.c.220V-230V, 50Hz
• Rated power: 18L 1500VA, 23L 1700VA
• Material: stainless steel (for medical)
• Max. work pressure: 2.5 bar Min. work pressure: -0.9 bar
• Max. temperature: 145 °C
• Chamber volume: 18L (Φ245×320mm) 23L (Φ245×450mm)
• Loading size: 18L (198×204×285) 23 L(198×204×385)
• Max. loading weight: 18L (3.07kg/cm2)
• 23L (3.21kg/cm2)
• Working pressure/temperature: 1.10~1.30bar /
121°C~122°C; 2.10~2.30bar / 134°C~135°C
• Water volume for one cycle: 0.16L (min) 0.18L(max)
PERFORMANCES
• Fast cycles (26min for HOLLOW 134°C)
• Limited water consumption
• Automatic water download
• 100% stainless steel
• Electronic water quality control
• Easy to position system
• GKE helix conformity test

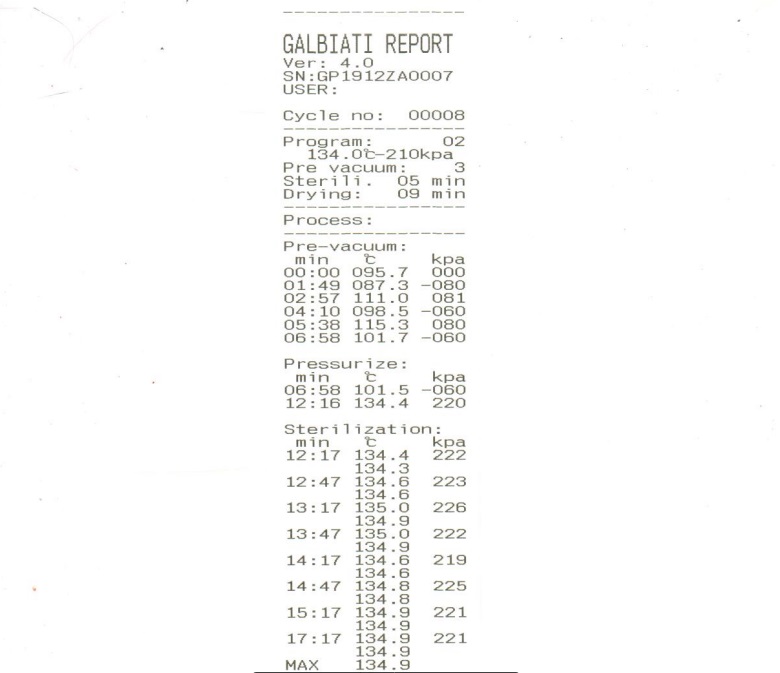

• Integrated printer and usb data saving systems
• 24 months warranty
